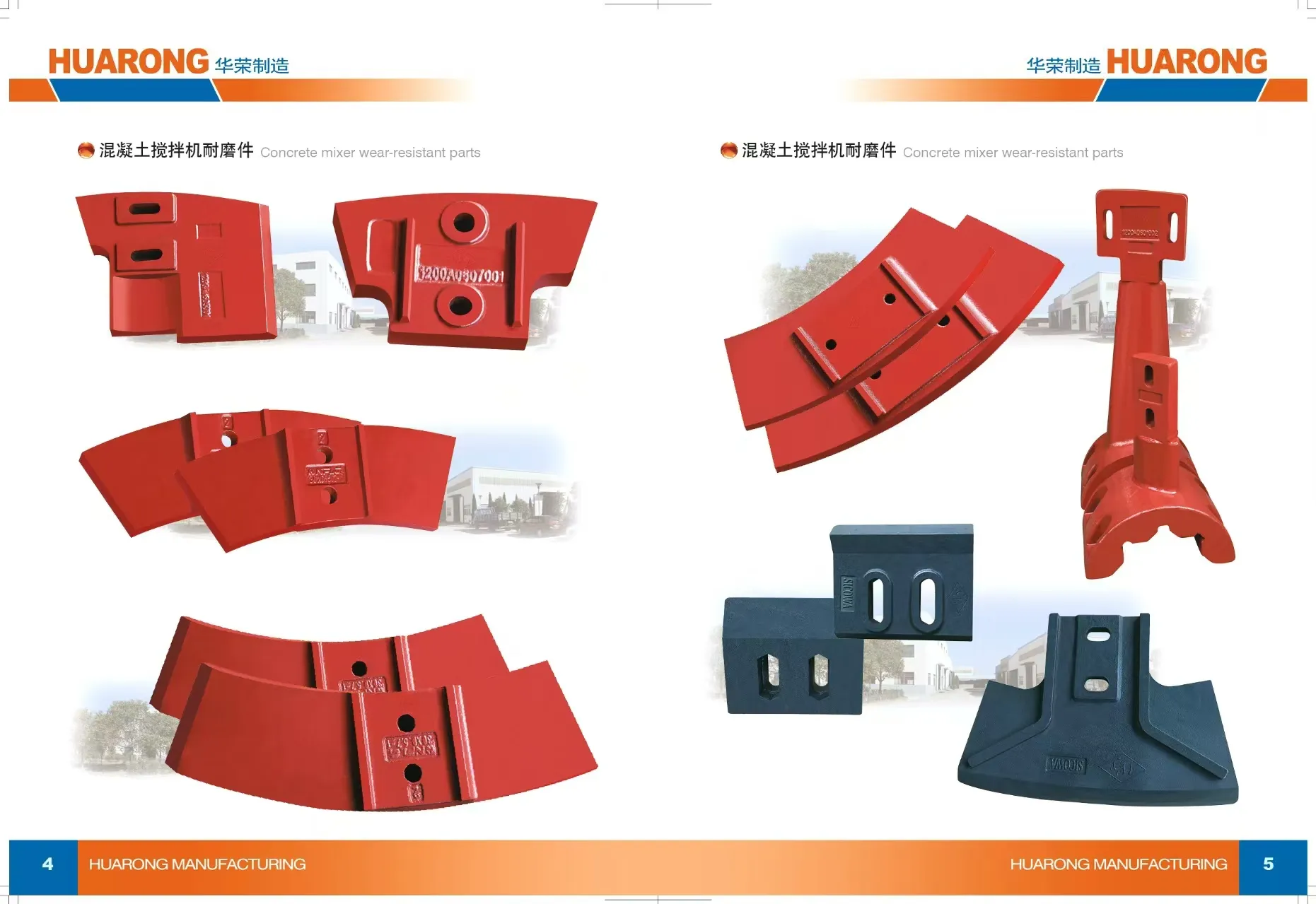

Wear-Resistant Alloy Parts For Concrete Mixers

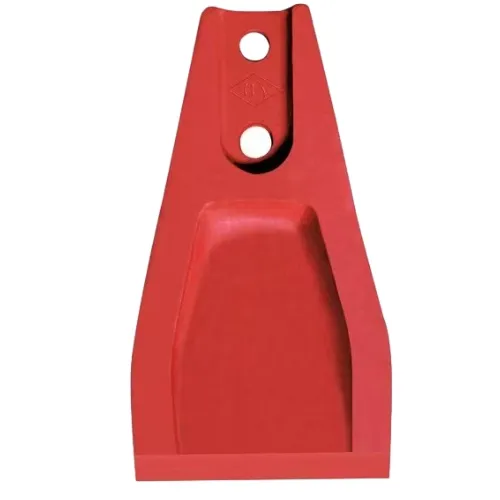

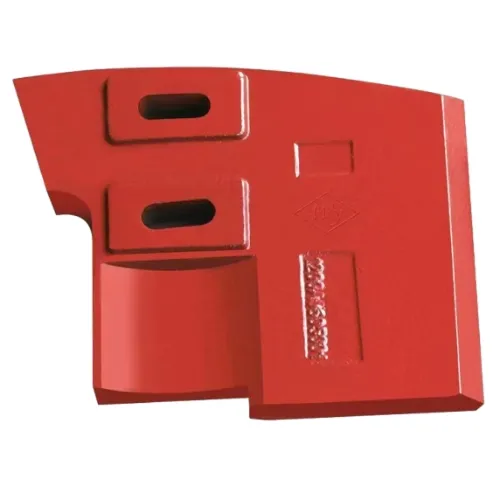

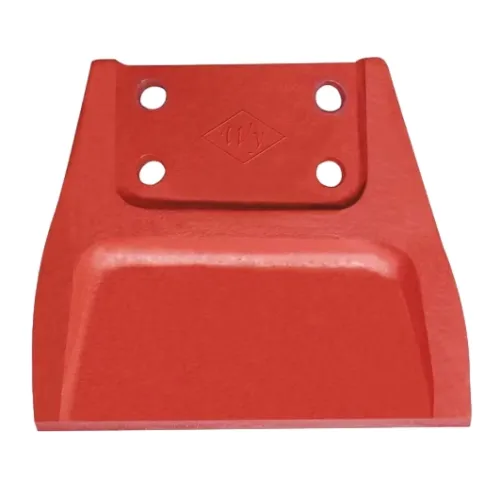

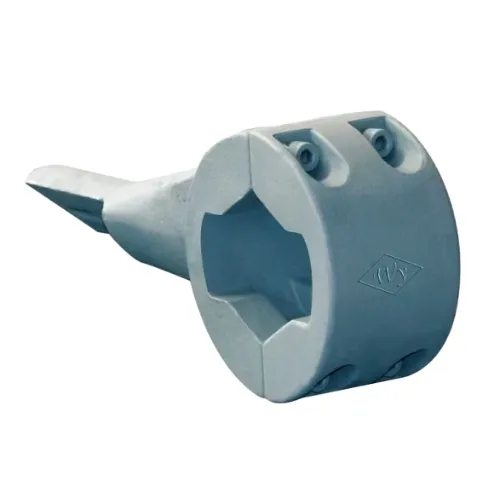

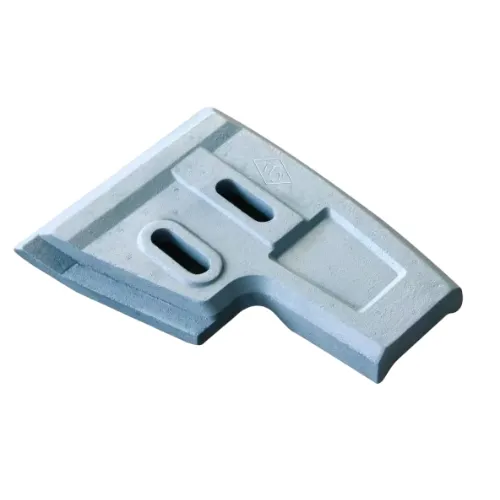

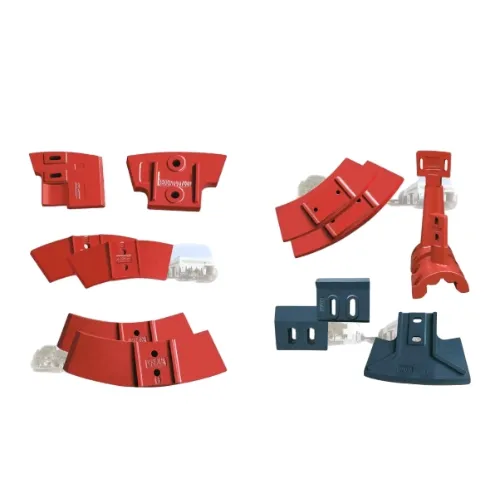

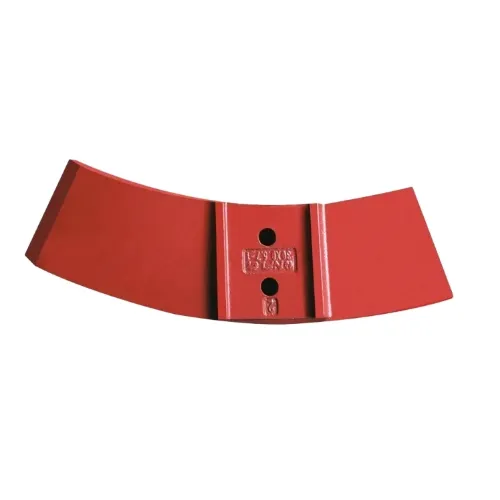

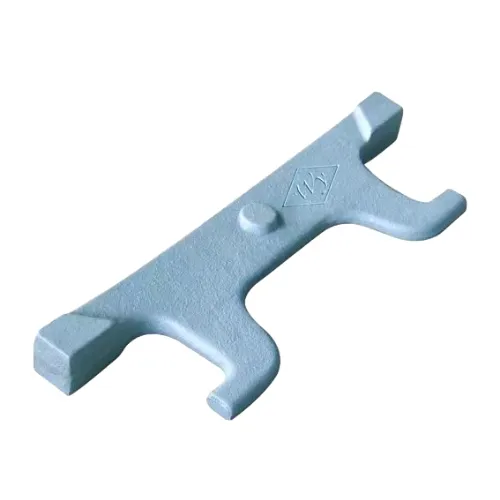

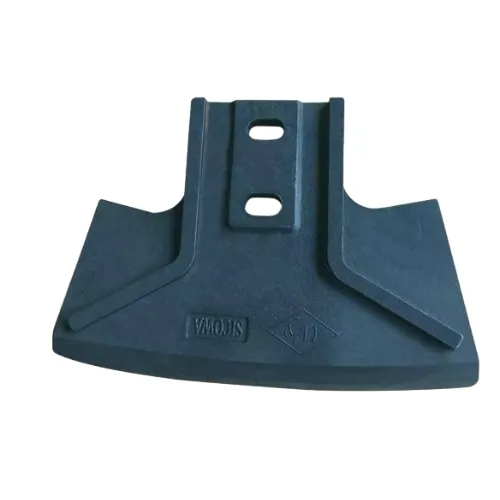

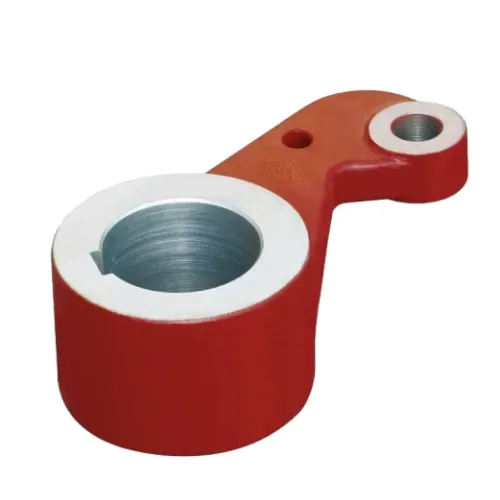

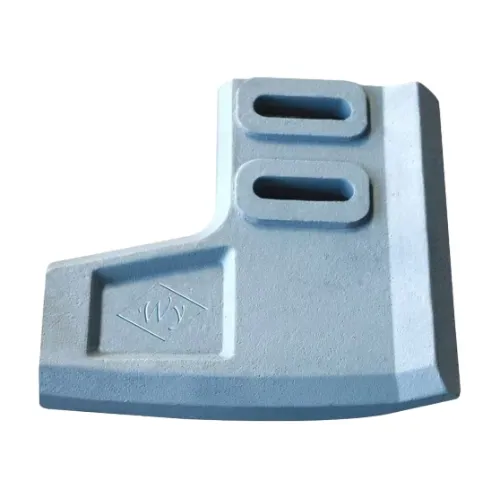

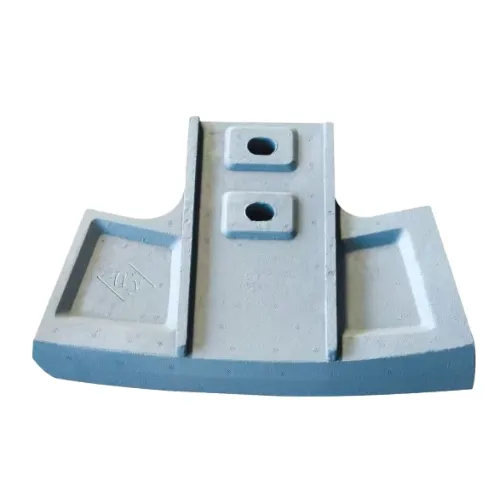

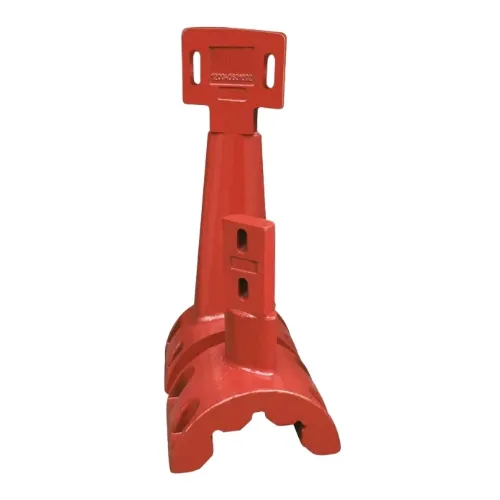

1.Blades and mixing arms: undertake the core function of material mixing. High chromium alloy material blades can resist aggregate impact wear and have a lifespan 3-5 times longer than ordinary steel.

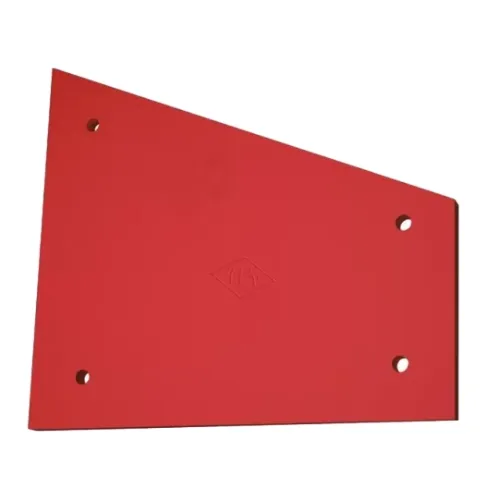

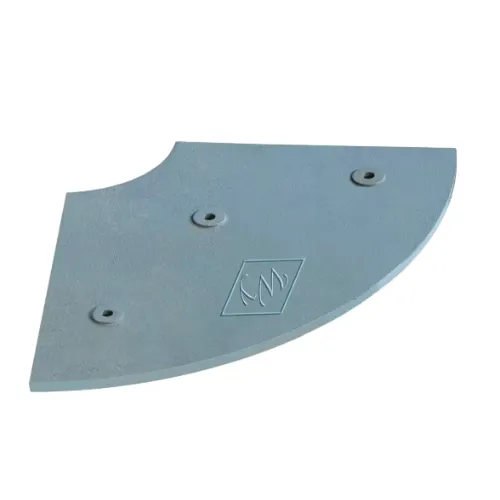

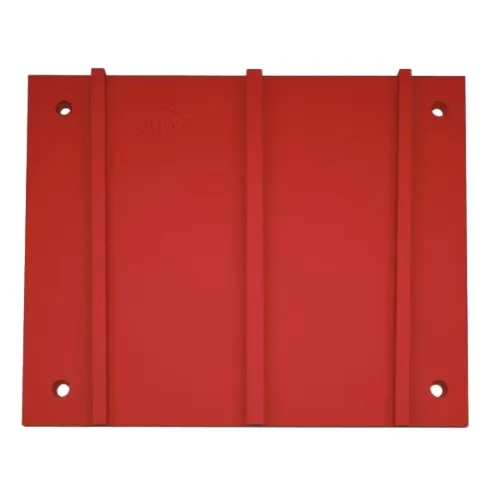

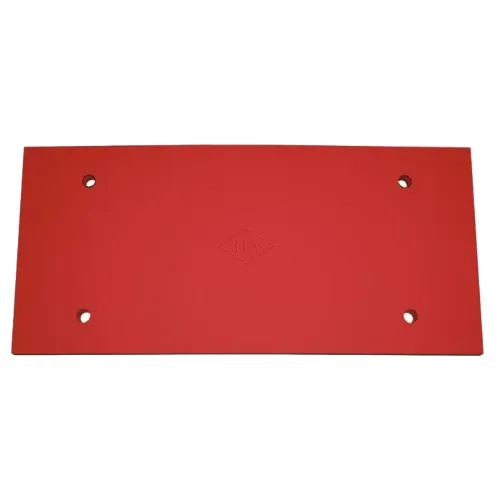

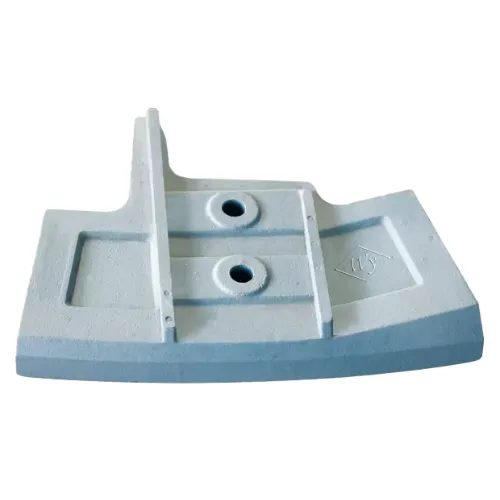

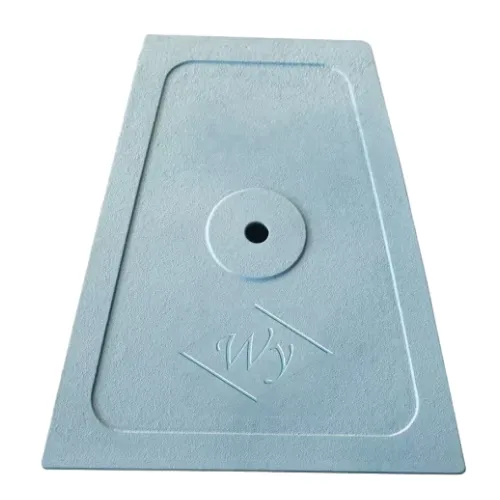

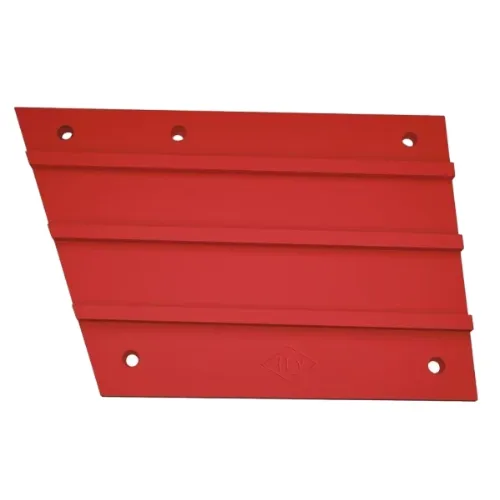

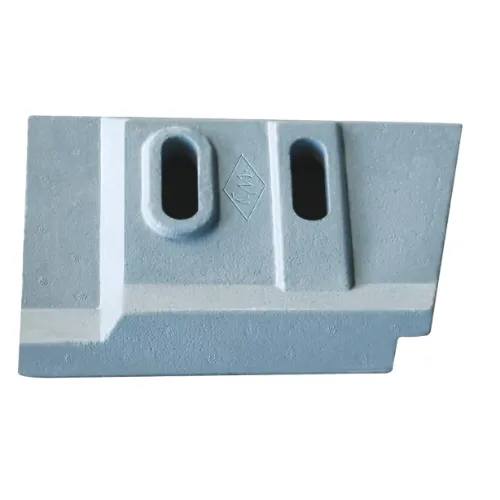

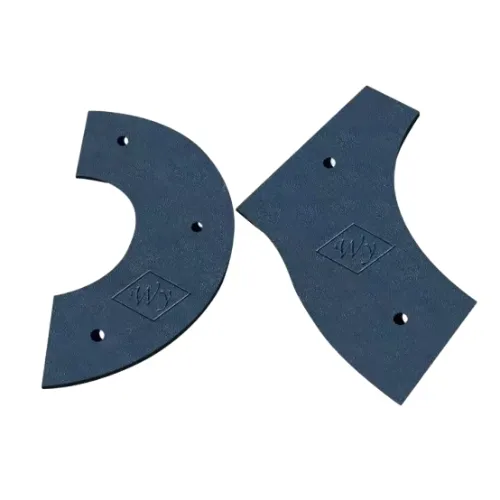

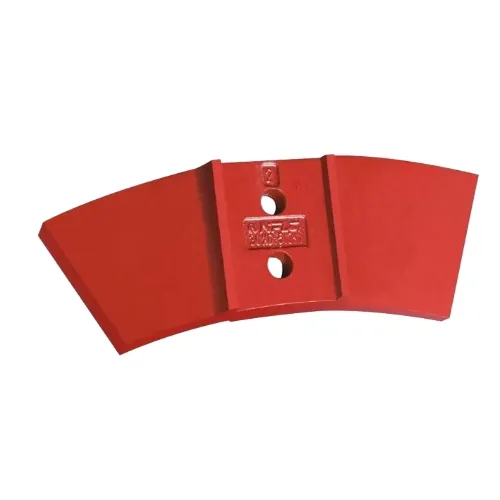

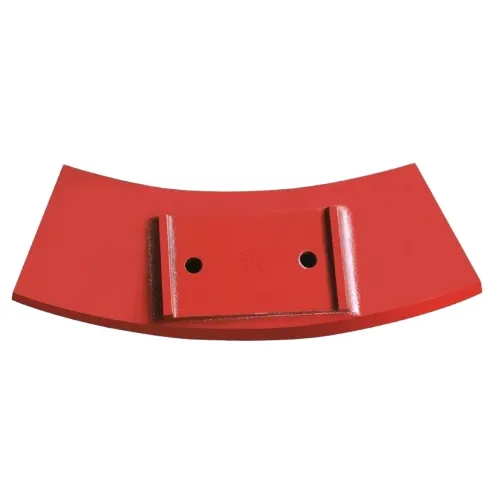

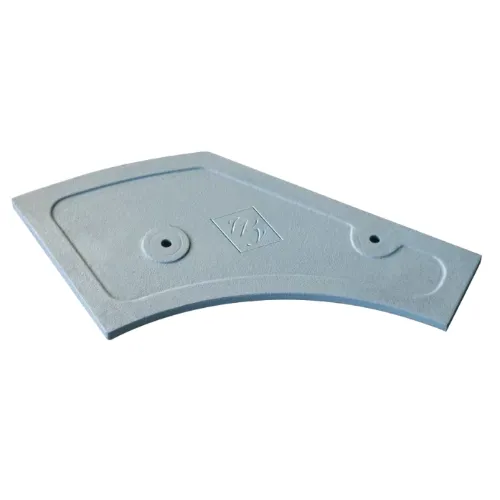

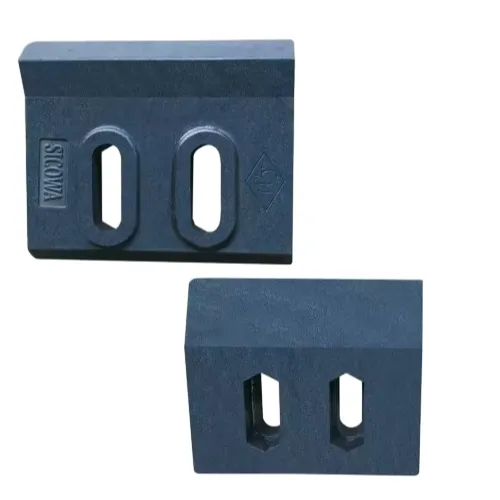

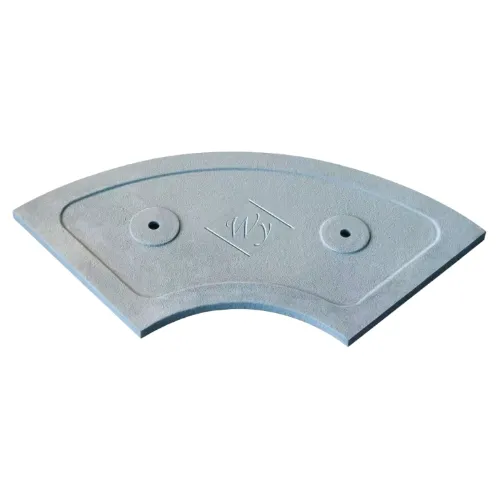

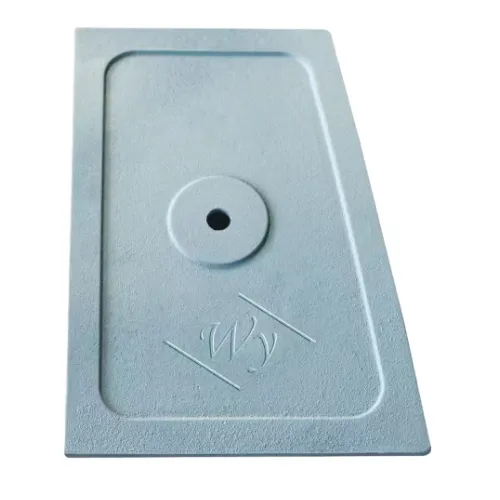

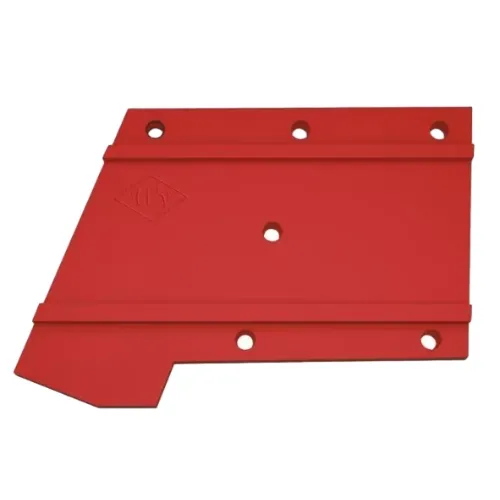

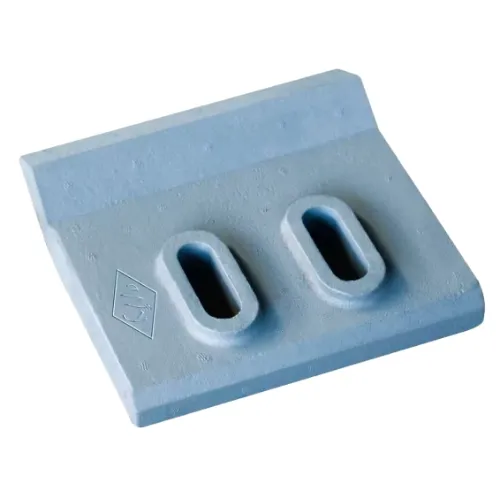

2.Lining and side plates: protect the mixing drum body and prevent corrosion and wear of cement slurry. Divided into flat bottom, conical bottom and other structures, matched with different mixing machines (such as JS500/750, JS3000).

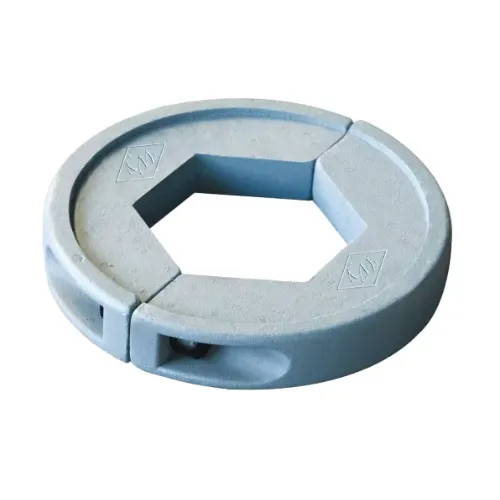

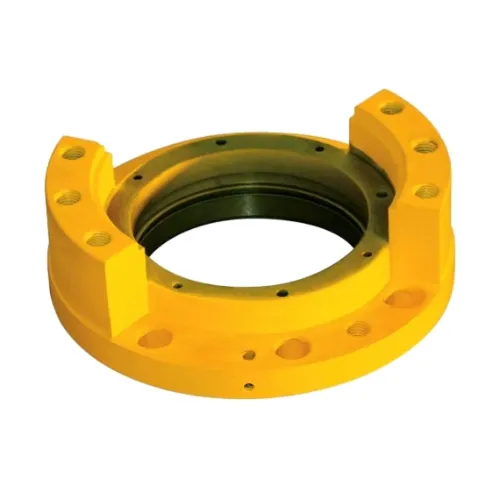

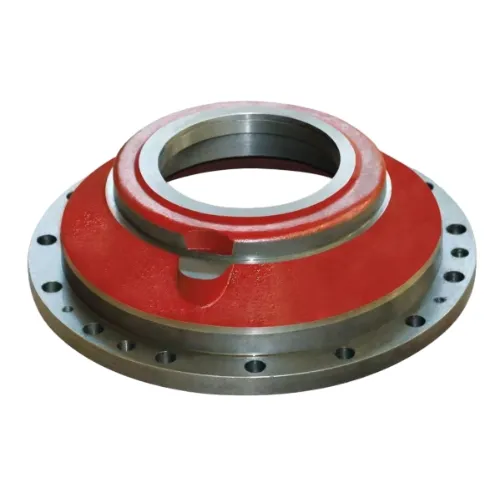

3.Shaft end seals: To prevent slurry from seeping into the bearing, they need to be designed to withstand high temperatures (220 ℃) and pressure to reduce equipment failure rates.

4.Spiral conveyor liner: Resists friction when conveying dry materials, suitable for YG8 hard alloy material.

5.Dust collector accessories: such as filter bags and flipping plates, need to be resistant to high temperature chemical corrosion.

Customization capability: Supports drawing processing, such as Tianjin BHS3.0 specialized lining plate and Southern Road Machinery 3000D blade.

Warranty requirement: The normal service life of high chromium alloy parts should be ≥ 6 months, and some manufacturers provide wear and tear replacement services.

Regular inspection focus: If the blade thickness wear exceeds 30% of the original design, it needs to be replaced to prevent dynamic balance imbalance.

Choose a composite structure liner (such as an 8+8mm weld overlay) that balances substrate toughness and surface wear resistance.

The mixing arm is equipped with a wear-resistant sheath to reduce the overall replacement cost.
